ls서보모터 APM-FF시리즈 1,000 rpm

iframe

??iframe ??

1. Xmotion 서보모터 형명 표기방법

Xmotion 서보모터 형명 포기방법 APM-FF30AMK,APM-FF50AMK,APM-FF22DMK,APM-FF35DMK,APM-FF55DMK,APM-FF75DMK,APM-FF12MMK,APM-FF20MMK,APM-F30MMK,APM-F44MMK,APM-FF20GMK,APM-FF30GMK,APM-FF443GMK,APM-FF60GMK,APM-FF75GMK,APM-FF30AMK2,APM-FF50AMK2,APM-FF22DMK2,APM-FF35DMK2,APM-FF55DMK2,APM-FF75DMK2,APM-FF12MMK2,APM-FF20MMK2,APM-FF30MMK2,APM-FF44MMK2,APM-FF20GMK2,APM-FF30GMK2,APM-FF443GMK2,APM-FF60GMK2,APM-FF75GMK2,APM-FF30AMN,APM-FF50AMN,APM-FF22DMN,APM-FF35DMN,APM-FF55DMN,APM-FF75DMN,APM-FF12MMN,APM-FF20MMN,APM-FF30MMN,APM-FF44MMN,APM-FF20GMN,APM-FF30GMN,APM-FF443GMN,APM-FF60GMN,APM-FF75GMN,APM-FF30AMN2,APM-FF50AMN2,APM-FF22DMN2,APM-FF35DMN2,APM-FF55DMN2,APM-FF75DMN2,APM-FF12MMN2,APM-FF20MMN2,APM-FF30MMN2,APM-FF44MMN2,APM-FF20GMN2,APM-FF30GMN2,APM-FF443GMN2,APM-FF60GMN2,APM-FF75GMN2

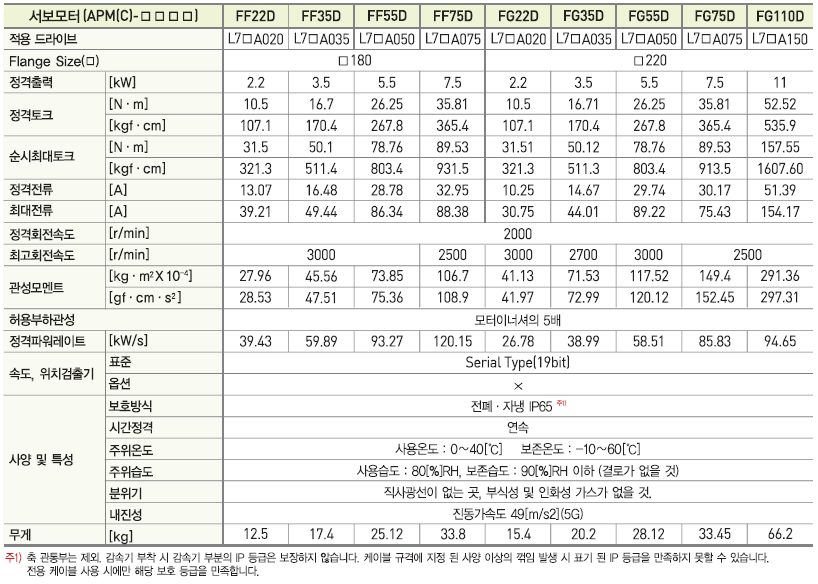

2. 서보모터 규격 및 토크 특성(200V)

서보모터 형명 (APM-FF**M)		APM-FF12MMK	APM-FF20MMK	APM-FF30MMK	APM-FF40MMK
서보모터 형명 (APM-FF**M)		APM-FF12MMK2	APM-FF20MMK2	APM-FF30MMK2	APM-FF40MMK2
적용 드라이브 (L7SAxxxB)		L7SA020B		L7SA035B	L7SA050B
정격출력	[kW]	1.2	2.0	3.0	4.4
정격토크	[N×m]	11.46	19.09	28.64	42.02
정격토크	[kgf×cm]	116.9	194.8	292.2	428.7
순시최대토크	[N×m]	34.38	57.29	85.94	105.05
순시최대토크	[kgf×cm]	350.70	584.40	876.60	1,071.52
정격전류	[A]	11.01	12.96	16.58	30.60
최대전류	[A]	33.03	38.88	49.74	85.68
정격회전속도	[r/min]	1000
최고회전속도	[r/min]	2000		1700	2000
관성모멘트	[kg×m²x10¯⁴]	27.96	46.56	73.85	106.7
관성모멘트	[gf×cm×s²]	28.53	47.51	75.36	108.9
허용부하관성		모터 이너셔의 5배
정격파워레이트	[kW/s]	46.94	78.27	111.04	165.38
속도, 위치검출기	표준	Serial Multi-Turn Type(19bit)
속도, 위치검출기	옵션	X
사양 및 특성	보호방식	전폐×자냉 IP65(축 관통부 제외)
	시간정격	연속
	주위온도	사용온도 : 0~40[°C], 보존온도 : -10~60[°C]
	주위습도	사용습도 : 80[%]RH, 보존습도 : 90[%]RH이하 (결로가 없을 것)
	분위기	직사광선이 없는 곳, 부식성 및 인화성 가스가 없을 것.
	내진성	진동가속도 49[m/s2](5G)
무게	[kg]	12.5	17.4	25.2	33.8

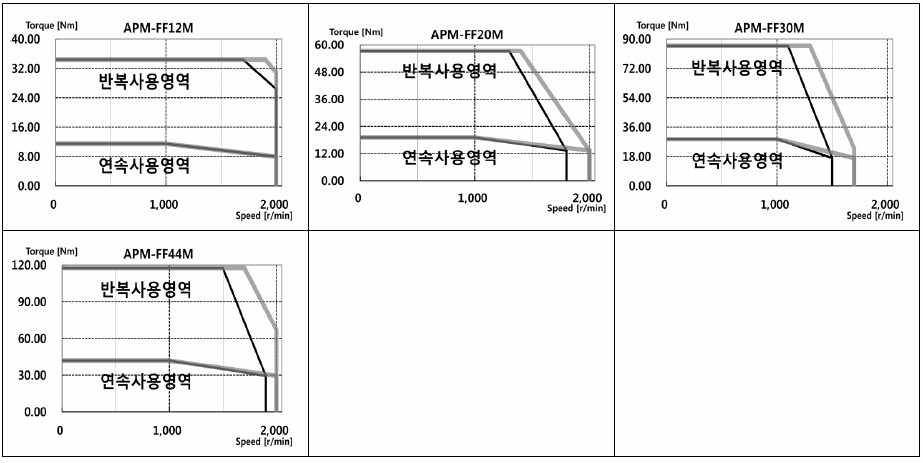

3. 서보모터 규격 및 토크 특성(200V)

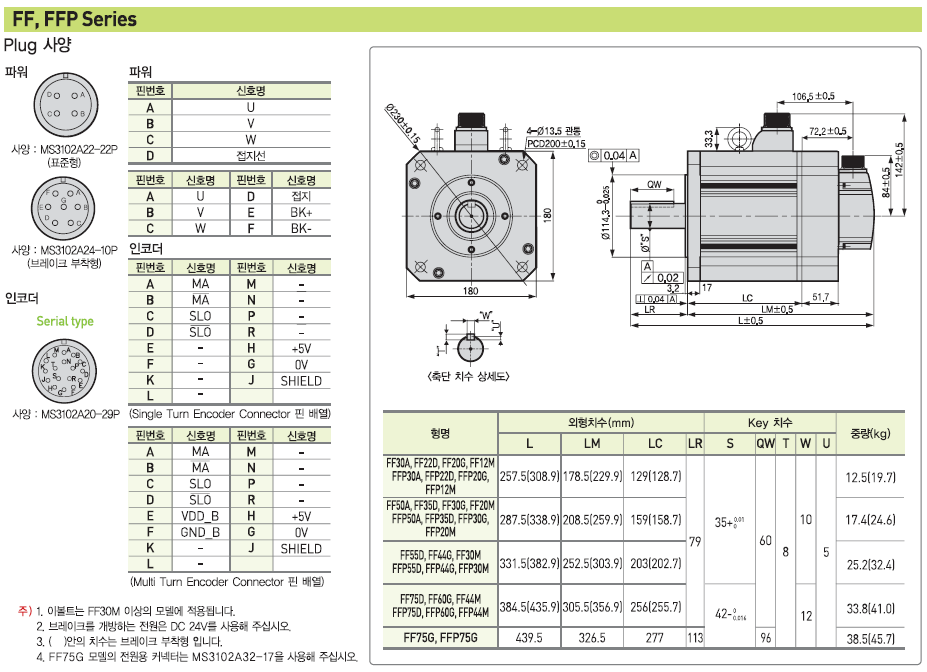

4. APM-FF 서보 Motor 외형도

APM-FF 서보 Motor 외형도 APM-FF30AMK,APM-FF50AMK,APM-FF22DMK,APM-FF35DMK,APM-FF55DMK,APM-FF75DMK,APM-FF12MMK,APM-FF20MMK,APM-F30MMK,APM-F44MMK,APM-FF20GMK,APM-FF30GMK,APM-FF443GMK,APM-FF60GMK,APM-FF75GMK,APM-FF30AMK2,APM-FF50AMK2,APM-FF22DMK2,APM-FF35DMK2,APM-FF55DMK2,APM-FF75DMK2,APM-FF12MMK2,APM-FF20MMK2,APM-FF30MMK2,APM-FF44MMK2,APM-FF20GMK2,APM-FF30GMK2,APM-FF443GMK2,APM-FF60GMK2,APM-FF75GMK2,APM-FF30AMN,APM-FF50AMN,APM-FF22DMN,APM-FF35DMN,APM-FF55DMN,APM-FF75DMN,APM-FF12MMN,APM-FF20MMN,APM-FF30MMN,APM-FF44MMN,APM-FF20GMN,APM-FF30GMN,APM-FF443GMN,APM-FF60GMN,APM-FF75GMN,APM-FF30AMN2,APM-FF50AMN2,APM-FF22DMN2,APM-FF35DMN2,APM-FF55DMN2,APM-FF75DMN2,APM-FF12MMN2,APM-FF20MMN2,APM-FF30MMN2,APM-FF44MMN2,APM-FF20GMN2,APM-FF30GMN2,APM-FF443GMN2,APM-FF60GMN2,APM-FF75GMN2

5. 서보 Xmotion 카다로그(PDF)


Mecapion 카다로그	ls산전 카다로그	Xmotion L7C 카다로그	iX7NH Series 카다로그	Motion Controller 카다로그

6. 서보 Motor CAD(2D,3D),PDF (3,000 rpm)

구 분	MOTOR KEY사양	ALZIP	2D	3D	PDF	MOTOR NO KEY사양	ALZIP	2D	3D	PDF
일반타입 (3,000 rpm)	APM-FF30AMK					APM-FF30AMN
일반타입 (3,000 rpm)	APM-FF50AMK					APM-FF50AMN
일반타입 (2,000 rpm)	APM-FF22DMK					APM-FF22DMN
	APM-FF35DMK					APM-FF35DMN
	APM-FF55DMK					APM-FF55DMN
	APM-FF75DMK					APM-FF75DMN
일반타입 (1,000 rpm)	APM-FF12MMK					APM-FF12MMN
	APM-FF20MMK					APM-FF20MMN
	APM-FF30MMK					APM-FF30MMN
	APM-FF44MMK					APM-FF44MMN
일반타입 (1,500 rpm)	APM-FF20GMK					APM-FF20GMN
	APM-FF30GMK					APM-FF30GMN
	APM-FF44GMK					APM-FF44GMN
	APM-FF60GMK					APM-FF60GMN
	APM-FF75GMK					APM-FF75GMN
브레이크 타입 (3,000 rpm)	APM-FF30AMK2					APM-FF30AMN2
브레이크 타입 (3,000 rpm)	APM-FF50AMK2					APM-FF50AMN2
브레이크 타입 (2,000 rpm)	APM-FF22DMK2					APM-FF22DMN2
	APM-FF35DMK2					APM-FF35DMN2
	APM-FF55DMK2					APM-FF55DMN2
	APM-FF75DMK2					APM-FF75DMN2
브레이크 타입 (1,000 rpm)	APM-FF12MMK2					APM-FF12MMN2
	APM-FF20MMK2					APM-FF20MMN2
	APM-FF30MMK2					APM-FF30MMN2
	APM-FF44MMK2					APM-FF44MMN2
브레이크 타입 (1,5000 rpm)	APM-FF20GMK2					APM-FF20GMN2
	APM-FF30GMK2					APM-FF30GMN2
	APM-FF44GMK2					APM-FF44GMN2
	APM-FF60GMK2					APM-FF60GMN2
	APM-FF75GMK2					APM-FF75GMN2
